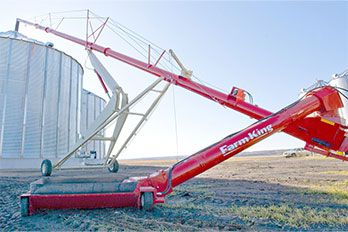

Farm King Grain Augers - Swing Away

Choose Farm King for the world's best grain augers. Choose Beulah Machinery for unprecedented support.

Farm King PTO driven grain augers have proved their durability, reliability, and value for decades around the world.

Beulah Machinery has been supporting Farm King products for nearly 20 years and have built a reputation for outstanding service and performance.

Your machinery is one of the most critical competitive advantages you can unlock on your farm. With the right choice, you’ll save time, enjoy true performance peace of mind and see value for decades to come.

That’s why Australia’s most experienced farmers choose Farm King. For years, Farm King have built the most reliable, durable and efficient augers in the world. Built tough, Farm King PTO driven augers have enduring speed and alignment, are rust-resistant and easy to maintain.

Whether you need a standard grain auger or a customised version to suit your specific needs, we’ll help you be more productive.

We wouldn’t put our name behind a product we haven’t used – that’s why we’ve farm-tested Farm King Augers for more than 20 years. Our commitment to using and repairing the machine means we carry a large stock of replacement parts and ready to support.

Standard Features

Square Grain Auger Flight Connections

Square Flighting Couplers

Square connectors allow the auger to run even if the coupling bolt is broken, unlike augers with round connectors that break with a barrel full of grain.

Grain Auger Scissor Lift Diagram

Scissor Lift

Fill larger bins than ever before with an engineered undercarriage that only requires 1600 psi hydraulic pressure to raise and lower the auger.

Grain Auger Leveling Hopper

Self-Leveling Hopper

The self-leveling hopper will remain level regardless of auger height thanks to a unique design that allows the intake hopper to be loaded on the most uneven terrain.

Additional Options

Grain Auger Hydraulic Mover

Hydraulic Hopper Mover

Perfect for sloping terrain or accessing bottom hopper trailers, the optional hydraulic mover (standard on the 16104) adds hydraulic motors to the inside wheels of the swing away hopper for better positioning

Retracting Swing Away Auger

Retracting Swing Auger

A retracting swing auger can provide unsurpassed flexibility to your swing away auger. Hydraulically driven, the swing auger rotates and extends out into position. With the Rodono Xtend, trucks can unload without needing to reverse to the auger, and the 10' (3m) wide hopper eliminates scraping corners.

Steering Axle for Grain Auger

Steerable Axle

Enjoy greater manoeuvrability and ditch painstaking reversing with an optional steerable axle. Available for the 13" Farm King Swing Away Grain Augers.

Grain Auger PTO Gearbox

1000 RPM Gearbox

Use the Auger on tractors lacking a 540 drive PTO with a 1000 RPM Gearbox.

Find out if a Farm King Grain Auger is right for your farm



Specifications

MODEL TUBE WIDTH LENGTH PTO REQ'D VERTICAL REACH FORWARD REACH
1060 10" 60' 48 HP 43' 8" (13.31m) 22' 3" (6.78m)
1070 10" 70' 55 HP 48' 0" (14.63m) 27' 10" (8.48m)
1080 10" 80' 65 HP 55' 0" (16.76m) 34' 9" (10.59m)
1370 13" 70' 80 HP 50' 0" (15.23m) 27' 5" (8.36m)
1385 13" 85' 90 HP 59' 6" (18.14m) 31' 10" (9.70m)
1395 13" 95' 100 HP 66' 4" (20.22m) 38' 9" (11.81m)
16104 16" 104' 175 HP 77' 4" (23.57m) 36' 1" (11.00m)


Dimensions

What's Included:

  • Isolating Valve to prevent the auger from creeping down
  • Safety Flow Valve keeps the auger lowering at a predetermined speed
  • Hardened Pins on the undercarriage for strength
  • Tapered Roller Bearing at the top to take down force rather than roller bearing
  • Reversing Kit allows the auger to be cleaned or cleared of a choke
  • Poly Drop Chute

13" Options:

  • Hydraulic Winch on intake auger
  • Hydraulic Mover for hopper
  • 1000 PTO Gearbox
  • Steerable Axle

16104 comes standard with:

  • Hydraulic Winch for intake auger
  • Hydraulic Mover for hopper
  • Light Kit
  • 1000 PTO Gearbox

Swing Away Augers can be fitted with the Rodono XTEND for faster and more efficient unloading of bottom hopper grain trailers.

Cut your transfer time in half.
